Project Description
K SERIES 800-5000 A

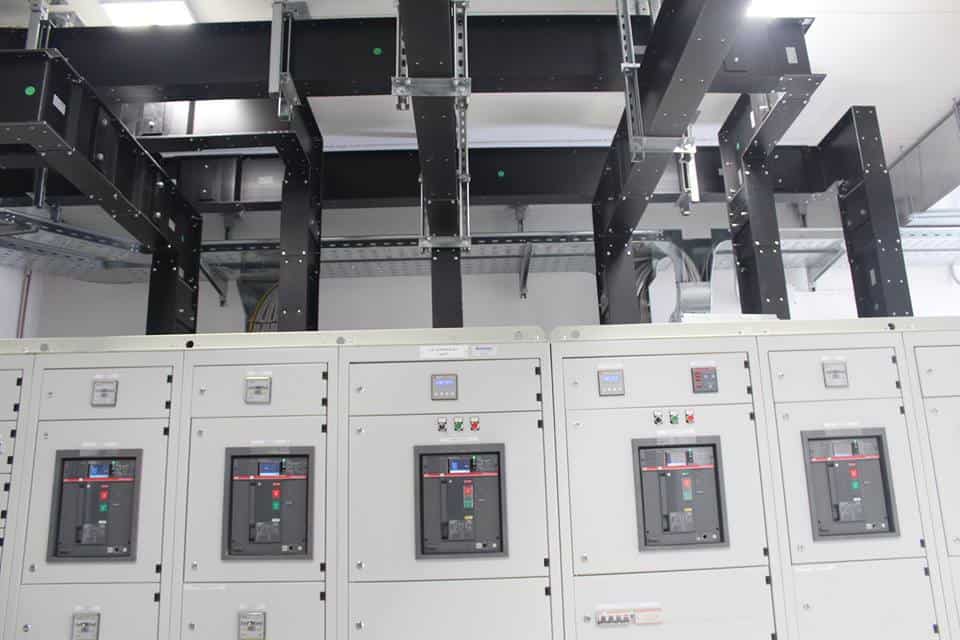

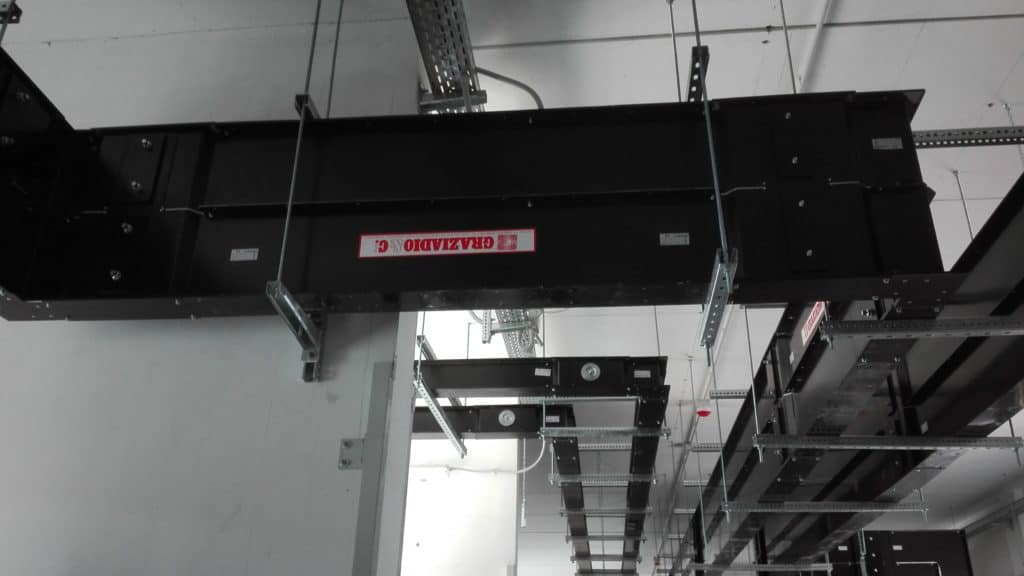

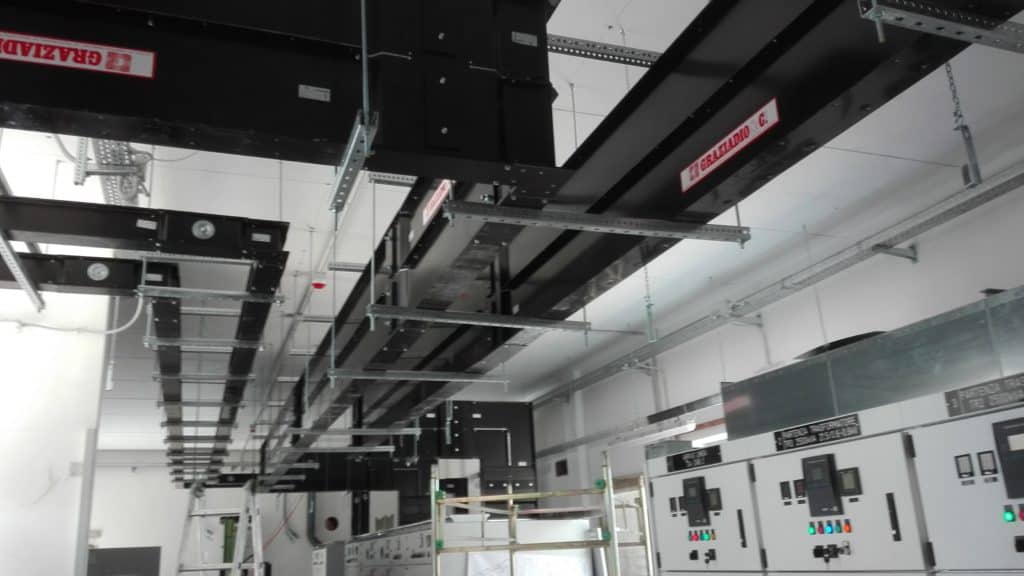

Graziadio & C. K SERIES busbars are available from 800 A up to 5000 A and are appropriated for power transportation and distribution in commercial and industrial buildings even in restricted spaces. This Busbar trunking system is compact and can be installed edgewise, flat or vertically. K SERIES busbars can be supplied with aluminum or copper conductors. The conductors are insulated with suitably pre-shaped, self-extinguishing V TM-0 halogen free polyester double film, in thermal class F complying with EN 60695-2 -10. The standard protection degree is IP42 and can be increased up to IP55. The aluminum housing provides protection and mechanical seal of the conductors. The matte black painting increase the heat dissipation along the line. The standard length of the straight element is 4 meters to minimize the number of joints and in consequence the installation time. On request can be supplied any other custom size.
- Straight elements length 4 m, the customized lengths are available on request
- Monobloc joint with predefined breaking
- Distance between plug-in points 1 m
- Tap off boxes from 32 up to 1600 A: plug-in type 32 – 400 A GDA series, bolted type 630 – 1600 A dedicated for K SERIES
- Energized line’s live parts are not accessibles.
- High resistance to short circuit
- Protection degree up to IP55 (IP65 on request)
- Custom made elements T, Z.
- Fire barriers with fire resistance up to 120 minutes
- Housing available in 8 different colors

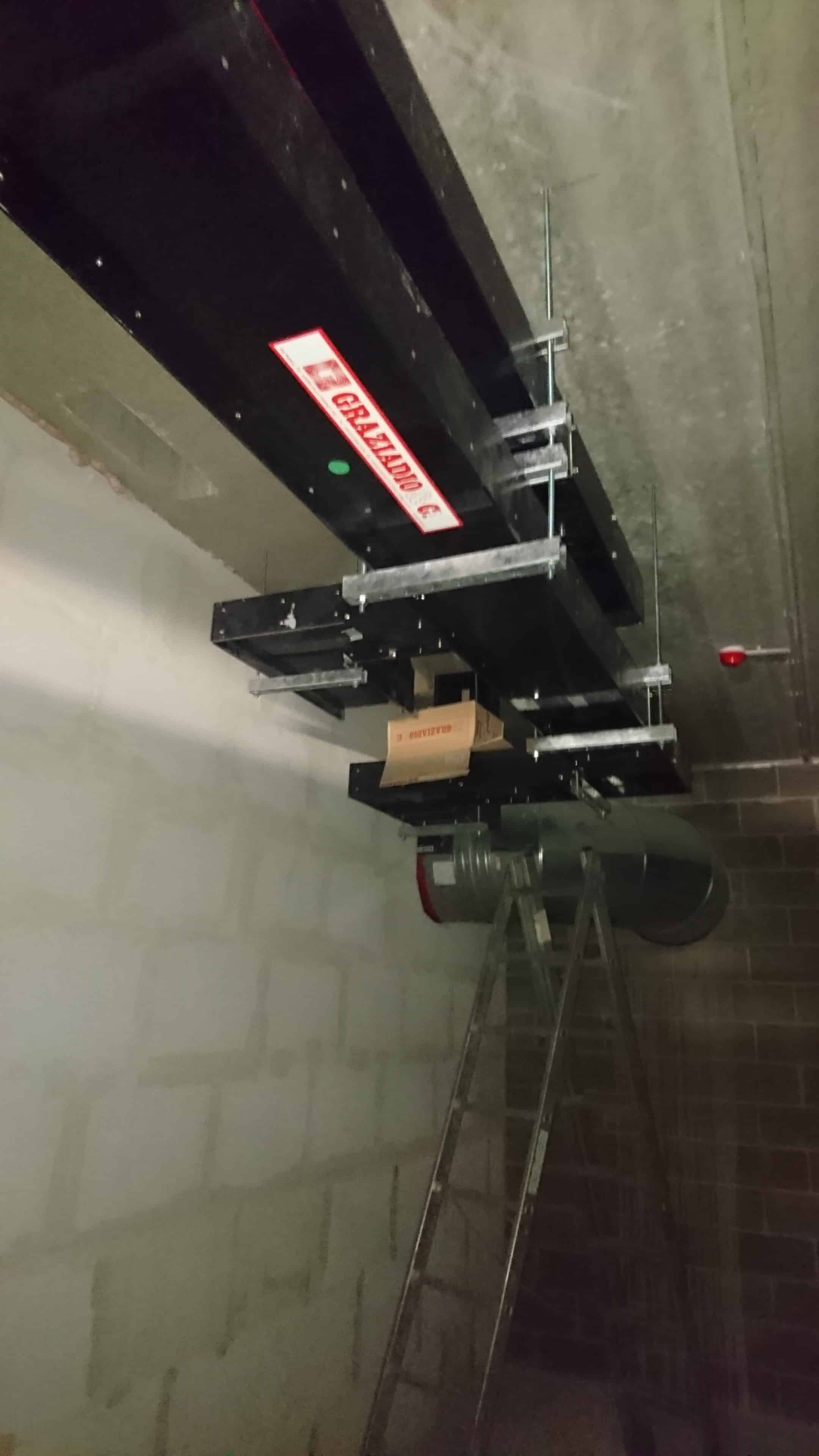

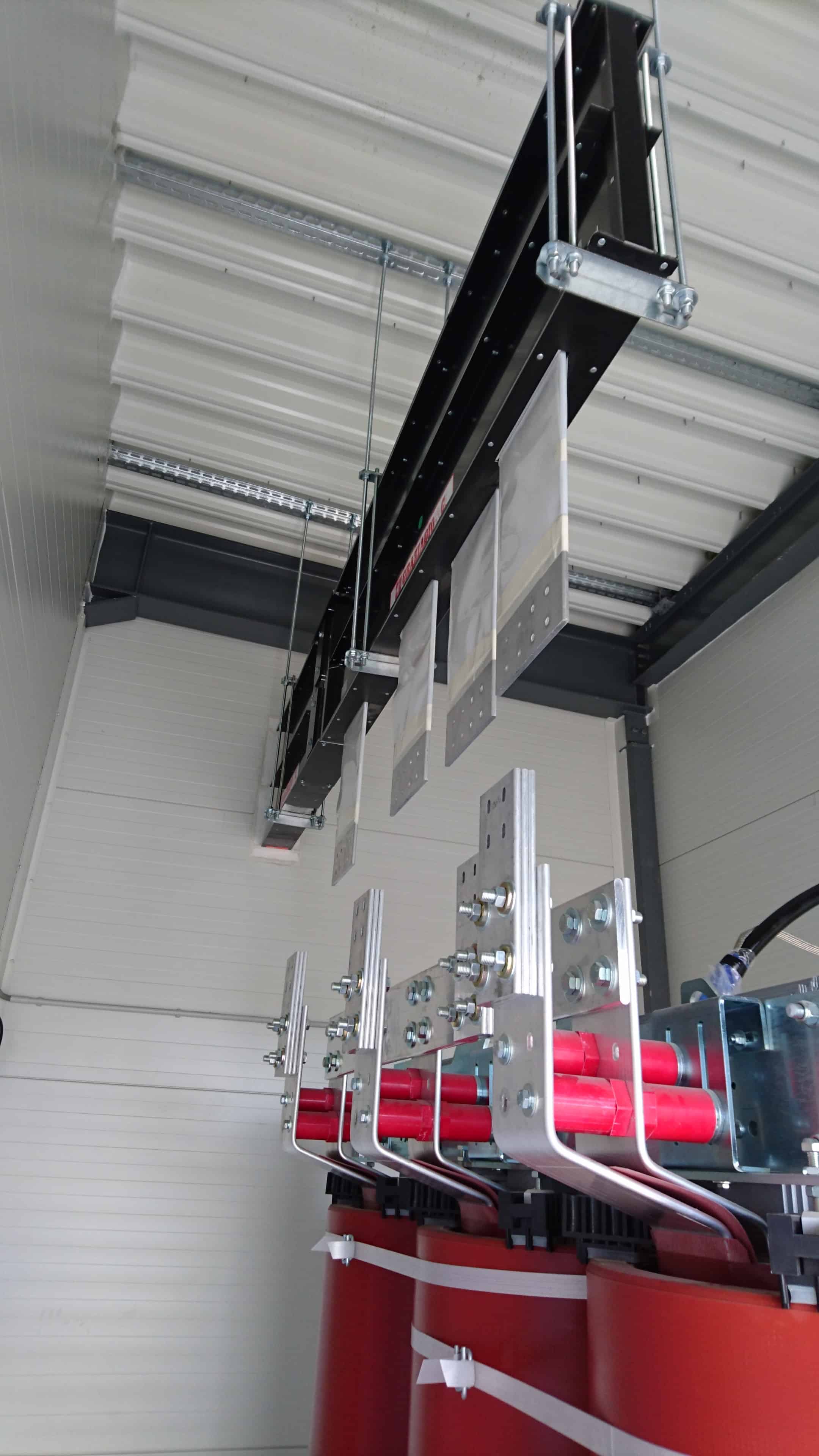

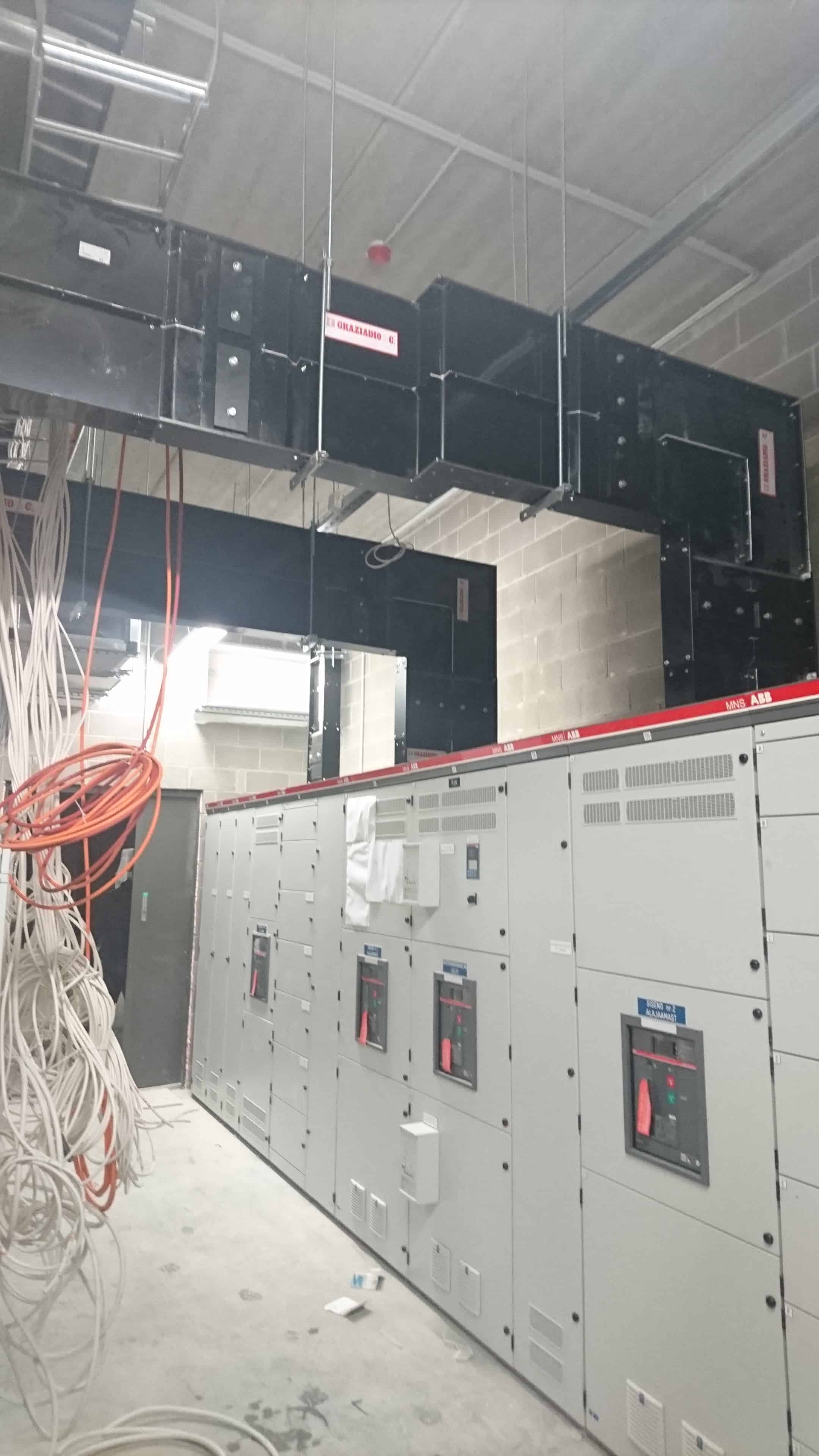

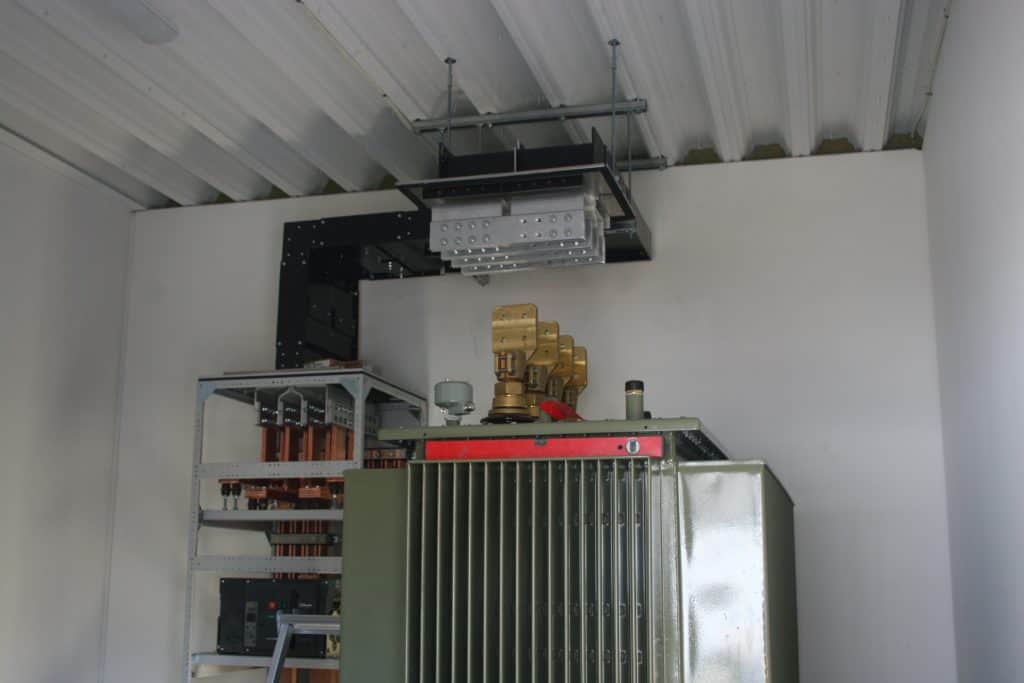

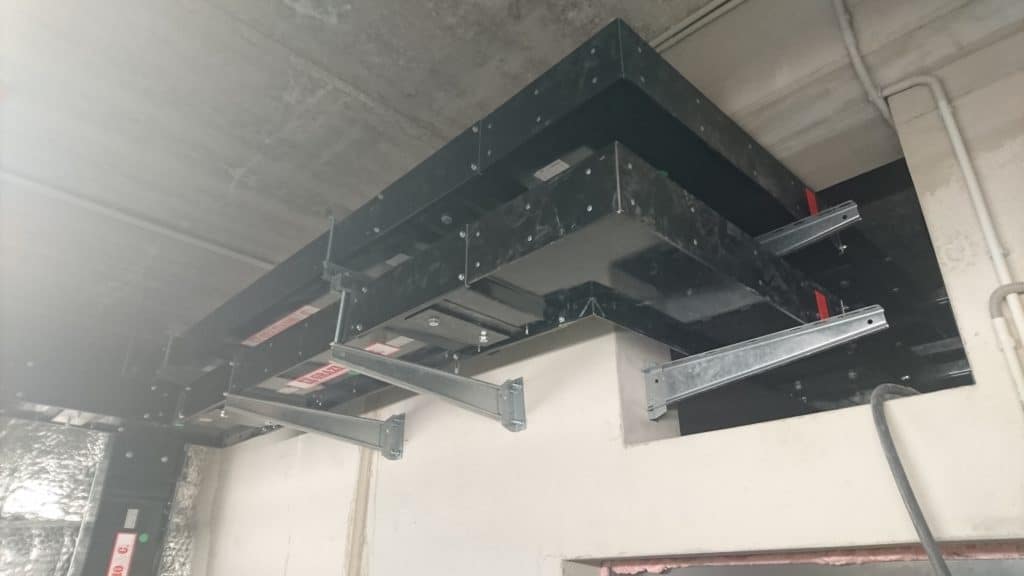

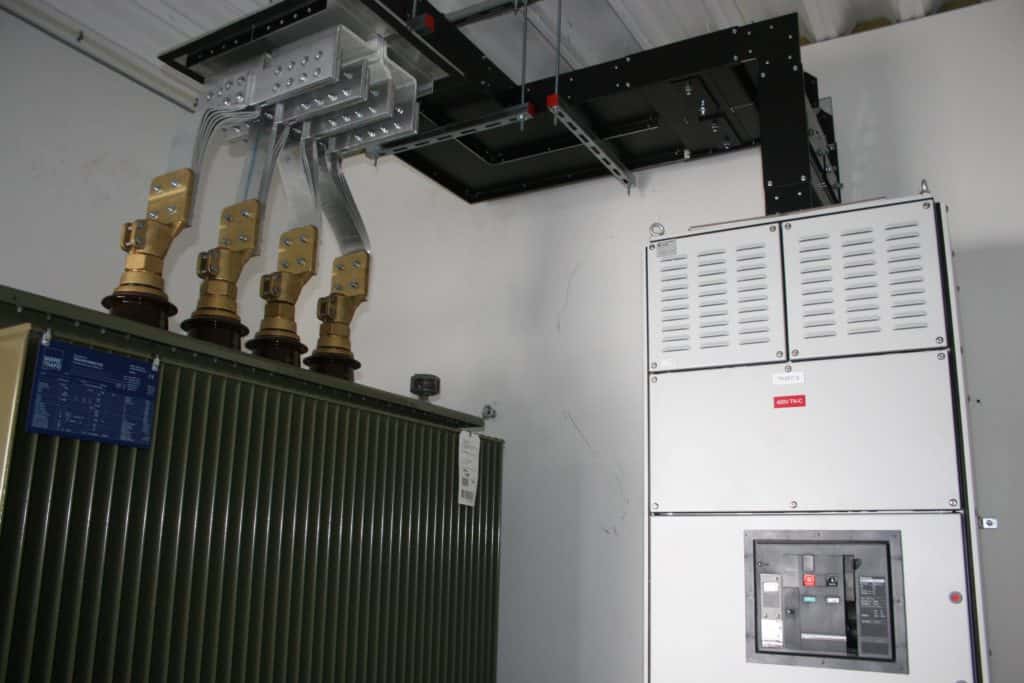

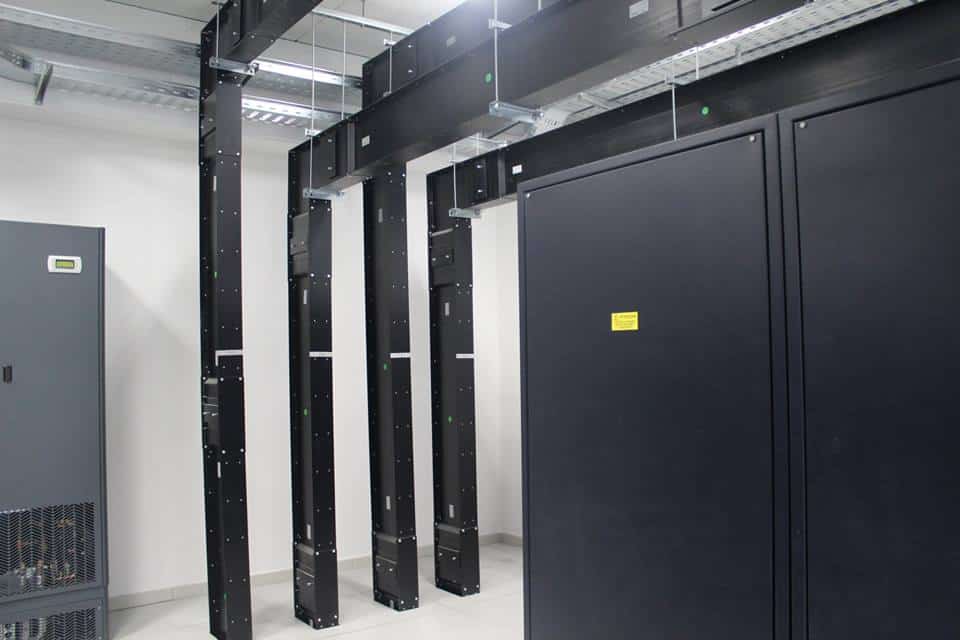

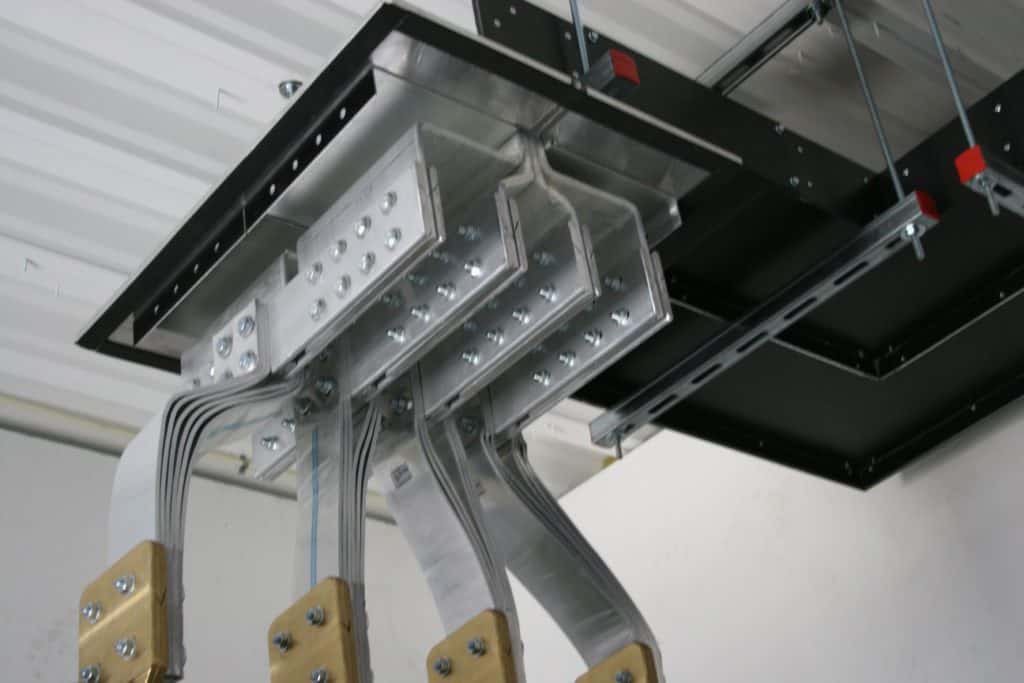

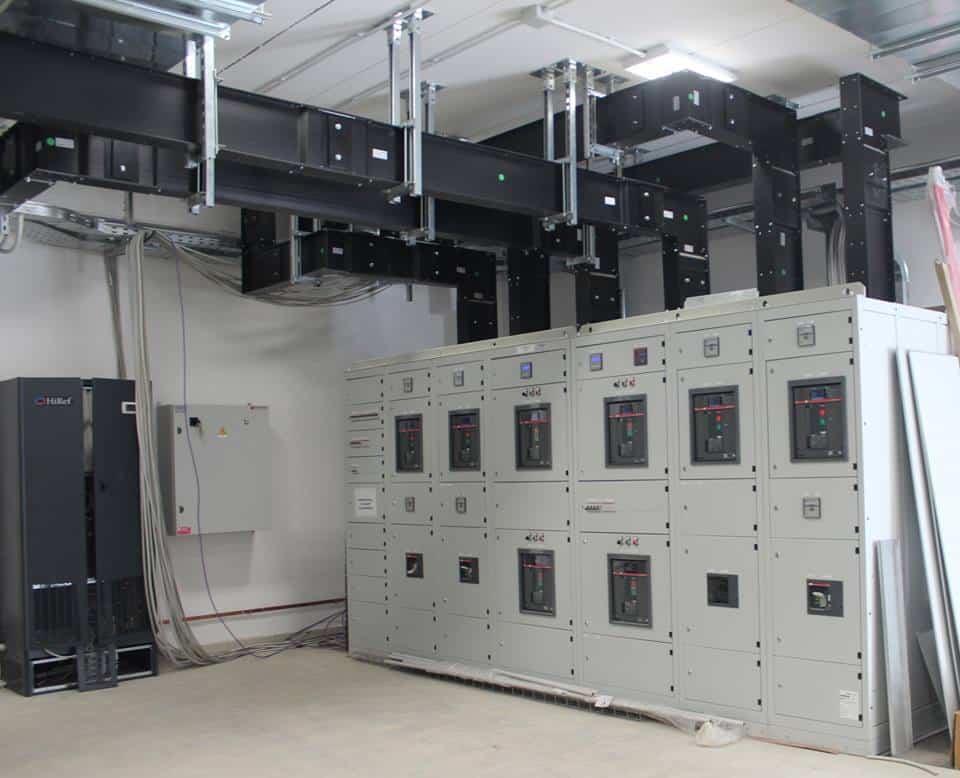

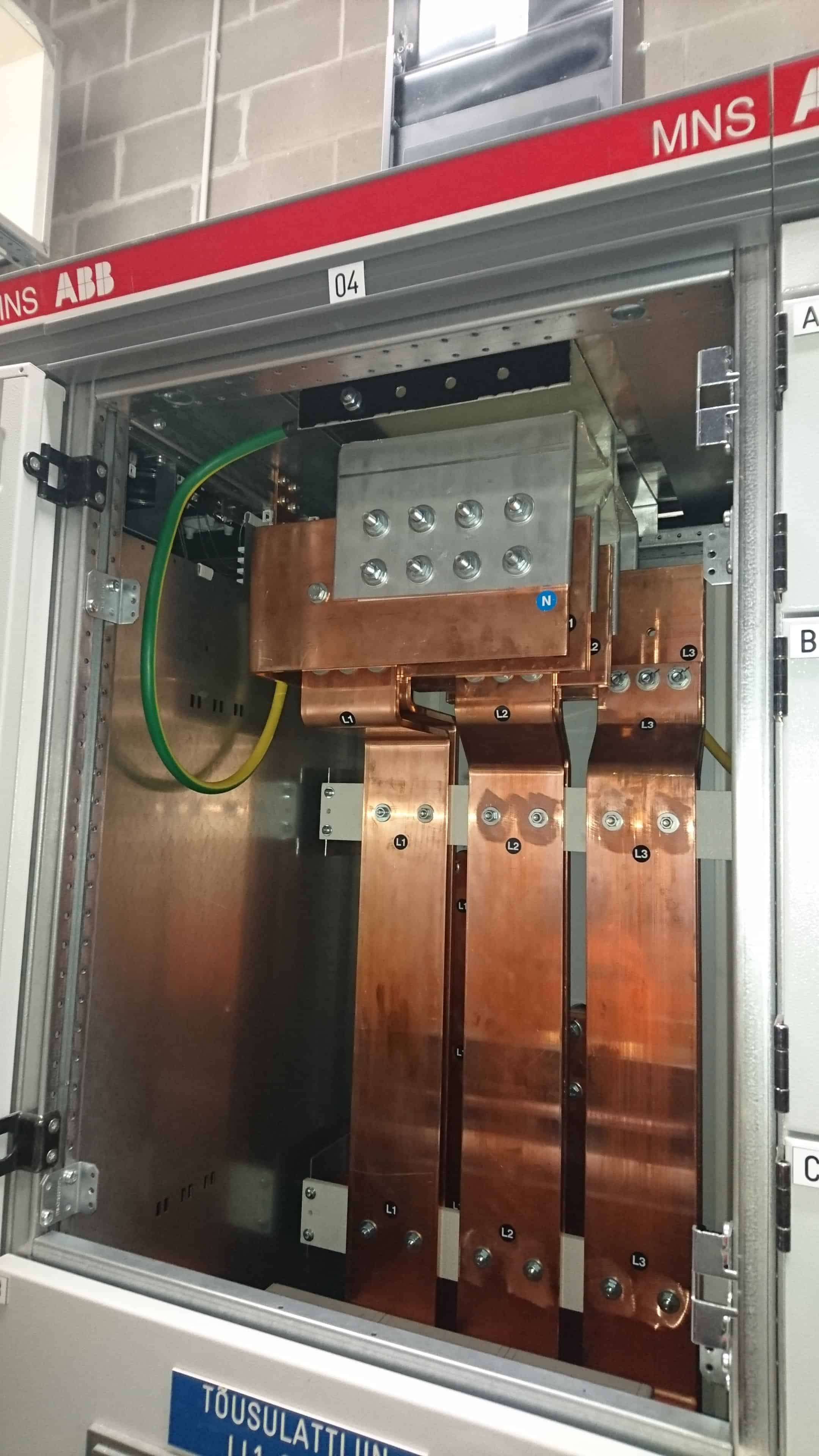

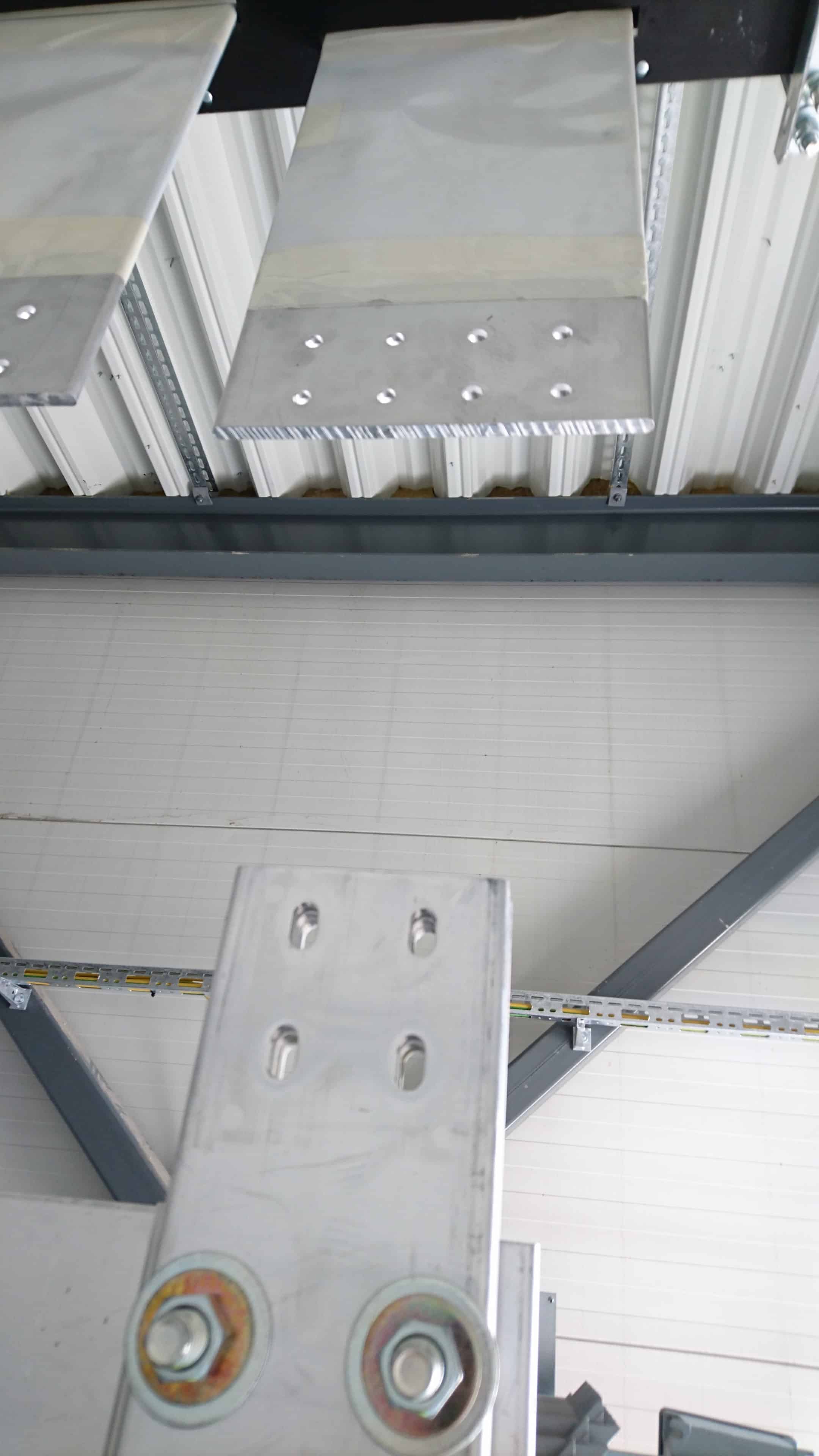

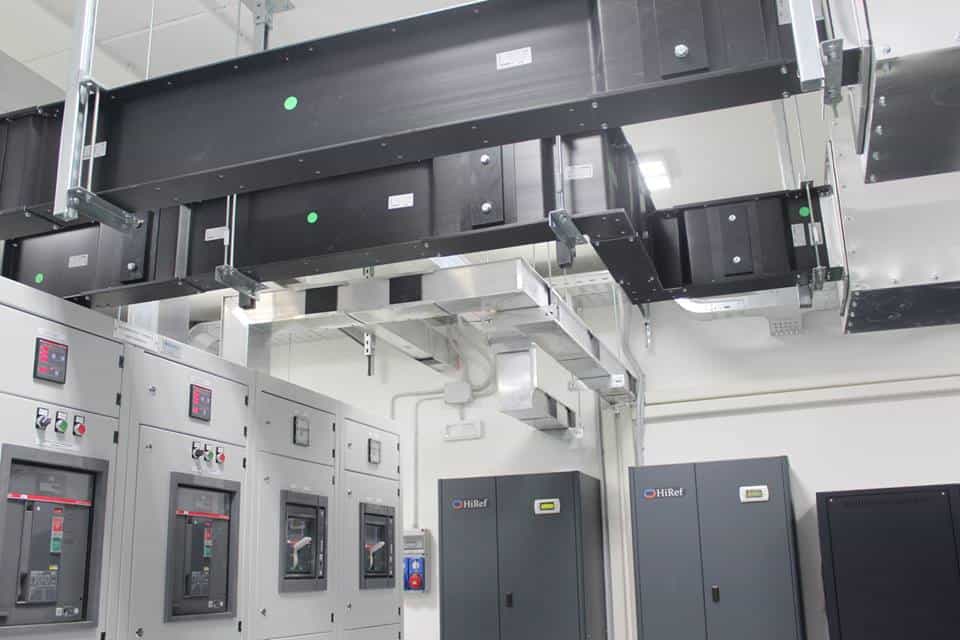

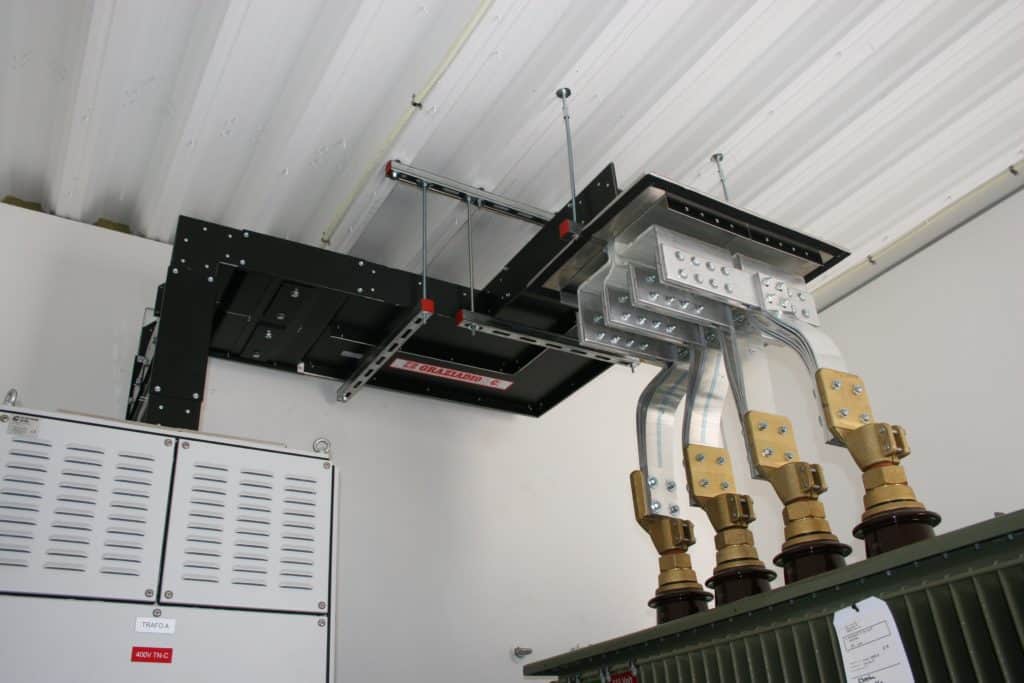

- Accessories to connect to transformers, generators, electric panels
- Advantages: corrosion resistance, reliable monobloc joint, high thermal dissipation, lightness, multiple customizations, reusable and recyclable.
Product details
- 800-5000 A
- Conductors: Aluminum / Copper
- Housing: black painted aluminum
- Complies with the standards: IEC 61439 / 1-6
Main applications
Industrial environments
Automotive
Airports
Power stations
Universities
Refineries
Office buildings
Naval sector
Residences
Oil & Gas
Garages
Parkings
Data center
Logistic centers
Shopping centers
Sports halls
Department stores
Services industry
Hospitals
Stadiums
Conference centers
